Xylem GHV Variable Speed Booster Sets

1. Home
2. Products
3. Booster Sets
4. Xylem GHV Variable Speed Booster Sets

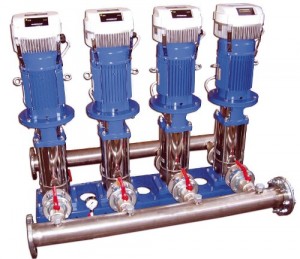

The Lowara GHV series booster sets are fully automatic booster sets for water supply. They are equipped with 2-4 variable speed pumps with a Hydrovar pump controller, pressure transmitters and control panel, all mounted on a frame for easy installation. The Hydrovar pump controller is easy to program, designed for maximum energy efficiency and can communicate with a BMS system via Modbus.

Variable speed sets equipped with Hydrovar® frequency converter and 2-3-4 multistage vertical pumps

Specifications

• Delivery: up to 640 m³/h
• Head: up to 160 m
• Power: up to 22 kW
• Maximum operating pressure: 16 bar

Specifications

• Number of pumps: 1 to 4
• Delivery: up to 640 m3/h
• Head: up to 160 m
• Input voltage of panel
• 3 x 400 V 50 Hz (three-phase)
• Power range: 4 x 37 kW (three-phase)
• Motor starting via variable frequency operation
• Water temperature of the liquid: 0°C to +80°C
• Pump type: vertical

Materials

• Pump: Stainless steel
• Manifold: AISI 304 stainless steel

Product applications and characteristics

• Easy to install
• Trouble-free servicing
• Pressure transducer controlled
• Compact solution
• Constant output pressure
• Variable speed motors with consequently reduced noise
• Protection against dry running
• Accessories: Membrane vessel
• Versions with non-return valve on suction line available on request
• Special configurations available on request
