Lowara ResiBoost Intelligent residential constant water pressure system

RESIBOOST IS A VARIABLE FREQUENCY DRIVE FOR CONSTANT PRESSURE SYSTEMS. RESIBOOST AUTOMATICALLY CONTROLS THE SPEED OF THE PUMP WHILE KEEPING THE PRESSURE IN THE SYSTEM CONSTANT

The ResiBoost is a series of constant pressure systems for energy efficient residential water supply. It's a complete packaged solution including Lowara stainless steel pumps, a variable speed drive and all other necessary components in one package.

The unit is programmed for constant pressure and it easy to setup and operate, just setting the required pressure (Plug and Play). See the video on the video tab for details.

ResiBoost is designed to be safe and secure including built in overcurrent, incorrect supply voltage, short circuit and dry run protections. It can also be manually by-passed in case of a VFD failure.


The ResiBoost is available with the following pumps:

  • e-HM vertical multistage pump
  • VM horizontal multistage pump
  • BG self-priming pump
  • GS 4" borehole pump
  • Scuba 5" well pump

Specifications

  • Delivery: up to 28 m³/h
  • Head: up to 95 m
  • Power supply: single-phase 50 and 60 Hz
  • Power: from 0.37 kW up to 2,2 kW
  • Maximum operating pressure: 16 bar

Pipe mounted version:

  • Turns a fixed speed pump to a variable speed
  • Easy to setup and operate, just select the required pressure "Plug and Play"
  • Built in dry run protection
  • Compact design
  • Built in pressure transducer with digita indicator
  • Control and panel with LCD display
  • Stored information of operated hours, number of starts, connections to the power supply, register of alarms
  • Built in protection of over current, incorrect supply voltage and short circuit
  • Anti - Icing protection >> just for water cooled version
  • IP55

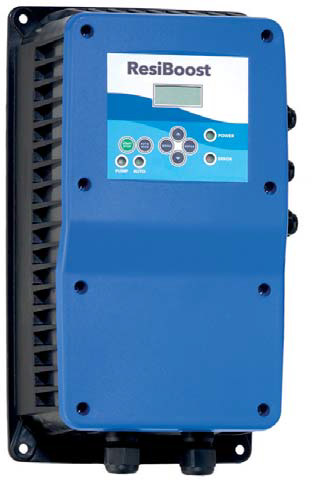

Wall mounted Variable speed pump driver. Single or three phase pumps.

  • Control and information panel with LCD screen
  • Cooling by natural or forced convection depending on model
  • Aluminum heat exchanger
  • 4-20 mA, 0-10 Bar External pressure transducer supplied (0-16 bar supplied as option)
  • Stored information of operated hours, number of starts, connections to the power supply, register of alarms
  • Automatic restore system in case of power supply failure
  • Built in dry run protection
  • Electronic input for detection of water level in tank, this system is independent of the dry run protection
  • IP54

Lowara ResiBoost Products

Lowara ResiBoost e-HM

Our e-HM series is a modern highly efficient horizontal multistage pump with best in class effi ciency and IE3 motors fi tted as standard. The pump housing is available in 304 or 316 stainless steel and impellers have a choice in either Noryl, 304 or 316 stainless steel. Flow up to: 7.2 m3/h (water cooled), 14 m3/h (air cooled).

Flow up to: 7.2 m3/h (water cooled), 14 m3/h (air cooled)
Head up to: 70 m (water cooled and air cooled)

Lowara ResiBoost BG

Close-coupled self-priming centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump.

Flow up to: 4.2 m3/h
Head up to: 53 m

Lowara ResiBoost Scuba

Multi-impeller submersible pump with the liquid end located underneath the motor which is cooled by the pumped liquid. The motor is protected by a double seal system with an oil chamber guaranteeing long lasting reliability. The techno polymer impellers and AISI 304 stainless steel body ensure superior performances and maximum operational effi ciency. Can also be operated in a horizontal position.

Flow up to: 7.5 m3/h
Head up to: 85 m (air cooled)

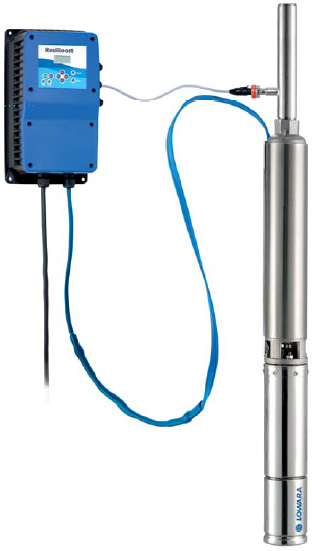

Lowara ResiBoost e-GS

Premium efficiency pumps and motors compliant with the ErP directive. Abrasion resistant construction combined with floating impellers ensuring optimum resistance to wear making this one of the best on the market for sand handling capabilities. The unit has a stainless steel structure with a built in non-return valve and cable guard attachment, the upper and lower supports are made of precision-cast stainless steel.

Flow up to: 15 m3/h (air cooled)
Head up to: 160 m (air cooled)

Plug and pump solutions

Pre-assembled packages composed by a premium effi ciency Lowara pump and a Resiboost drive for the quickest and easiest installation.

M/M
1005602001U RESIBOOST MMW09UK/1HM03P05
1005602002U RESIBOOST MMW09UK/1HM04P05
1005602003U RESIBOOST MMW09UK/1HM05P05
1005602004U RESIBOOST MMW09UK/1HM06P07
1005602006U RESIBOOST MMW09UK/3HM03P05
1005602007U RESIBOOST MMW09UK/3HM04P05
1005602008U RESIBOOST MMW09UK/3HM05P07
1005602009U RESIBOOST MMW09UK/3HM06P09
1005602010U RESIBOOST MMW09UK/5HM02P05
1005602011U RESIBOOST MMW09UK/5HM03P05
1005602012U RESIBOOST MMW09UK/5HM04P07
1005602013U RESIBOOST MMW09UK/5HM05P09
1005602015U RESIBOOST MMW09UK/10HM02P11
1005602016U RESIBOOST MMW09UK/10HM03P15
M/T
1005605000 RESIBOOST MTW10C/1HM02P03
1005605001 RESIBOOST MTW10C/1HM03P03
1005605002 RESIBOOST MTW10C/1HM04P04
1005605003 RESIBOOST MTW10C/1HM05P05
1005605004 RESIBOOST MTW10C/1HM06P07
1005605005 RESIBOOST MTW10C/3HM02P03
1005605006 RESIBOOST MTW10C/3HM03P04
1005605007 RESIBOOST MTW10C/3HM04P05
1005605008 RESIBOOST MTW10C/3HM05P07
1005605010 RESIBOOST MTW10C/5HM02P04
1005605011 RESIBOOST MTW10C/5HM03P05
1005605012 RESIBOOST MTW10C/5HM04P11
1005605013 RESIBOOST MTW10C/5HM05P11
1005605015 RESIBOOST MTW10C/10HM02P11
1005605016 RESIBOOST MTW10C/10HM03P15
